Powerful, Flexible and Fully Customizable Mobile Lighting Solution
Key Product Features
- •8kVA diesel generator provides reliable independent power for lighting and auxiliary equipment.
- •Kubota D1105 water-cooled engine delivers dependable performance and efficient operation.
- •SmartGen controller provides convenient monitoring and control of the generator system.
- •4 × 500W LED lamps provide a total lighting power of 2,000W for wide-area illumination.
- •9m 7-section mast provides excellent elevated lighting coverage.
- •Manual crank lifting system offers simple, durable and easy-to-maintain operation.
- •359° & 60° lamp rotation enables flexible adjustment of the lighting direction.
- •120L fuel tank supports extended operation with fewer refueling stops.
- •2 × 16-inch tires + 4 stabilizer legs provide easy transportation and stable positioning.
- •22 units per 40ft container, helping optimize international shipping and logistics costs.
Fully Customizable for Your Project
We provide OEM and customized mobile lighting tower solutions for distributors, rental companies, contractors and overseas projects. Customers can specify the generator configuration, engine brand, lighting system, mast height, lamp type, trailer design, body color, product style and company logo according to project requirements.
Available customization options include Kubota, Cummins, Perkins and other engine brands, different LED lamp configurations, customized mast heights, alternative lamp quantities and power ratings, as well as customized trailer structures. The enclosure can also be produced in your preferred RAL color, while your company logo, brand name and product decals can be incorporated into the design.
This makes the lighting tower suitable not only as a standard product but also as a private-label and OEM mobile lighting solution for international distributors.
Typical Applications & Scenarios
•The mobile lighting tower is ideal for:
•Construction Sites – night construction, building projects and temporary site lighting
•Roadwork & Infrastructure – highway construction, bridge projects and maintenance
•Mining & Quarrying – remote mining areas and night operations
•Oil & Gas Projects – temporary lighting for field operations
•Outdoor Events – concerts, festivals, exhibitions and sports events
•Emergency & Disaster Response – rescue operations and temporary emergency lighting
•Rental Fleets – portable lighting equipment rental businesses
Technical Specifications
|
Item |
Specification |
|
Product Type |
Trailer-Mounted Mobile Lighting Tower |
|
Power Unit |
8kVA Diesel Generator |
|
Engine |
Kubota D1105 Water-Cooled Diesel Engine |
|
Controller |
SmartGen Controller |
|
Light Source |
4 × 500W LED Lamps |
|
Total Lighting Power |
2,000W |
|
Mast Type |
7-Section Telescopic Mast |
|
Maximum Mast Height |
9m |
|
Mast Lifting |
Manual Crank |
|
Lamp Rotation |
359° & 60° |
|
Fuel Tank |
120L |
|
Tires |
2 × 16-inch Tires |
|
Stabilizers |
4 Support Legs |
|
Loading Quantity |
22 Units / 40ft Container |
|
Customization |
Color, Style, Logo, Engine, Lamps & Mast Available |

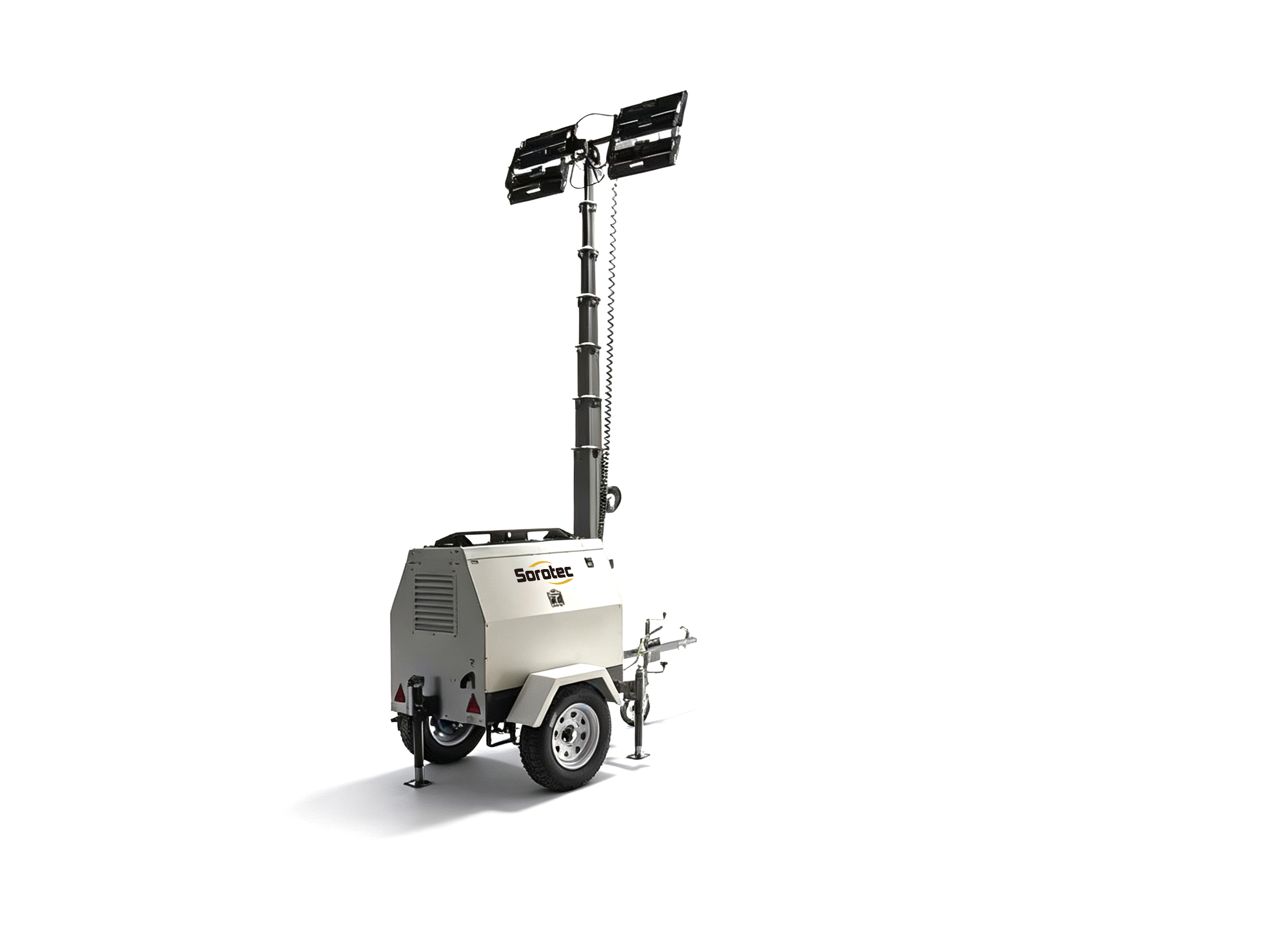

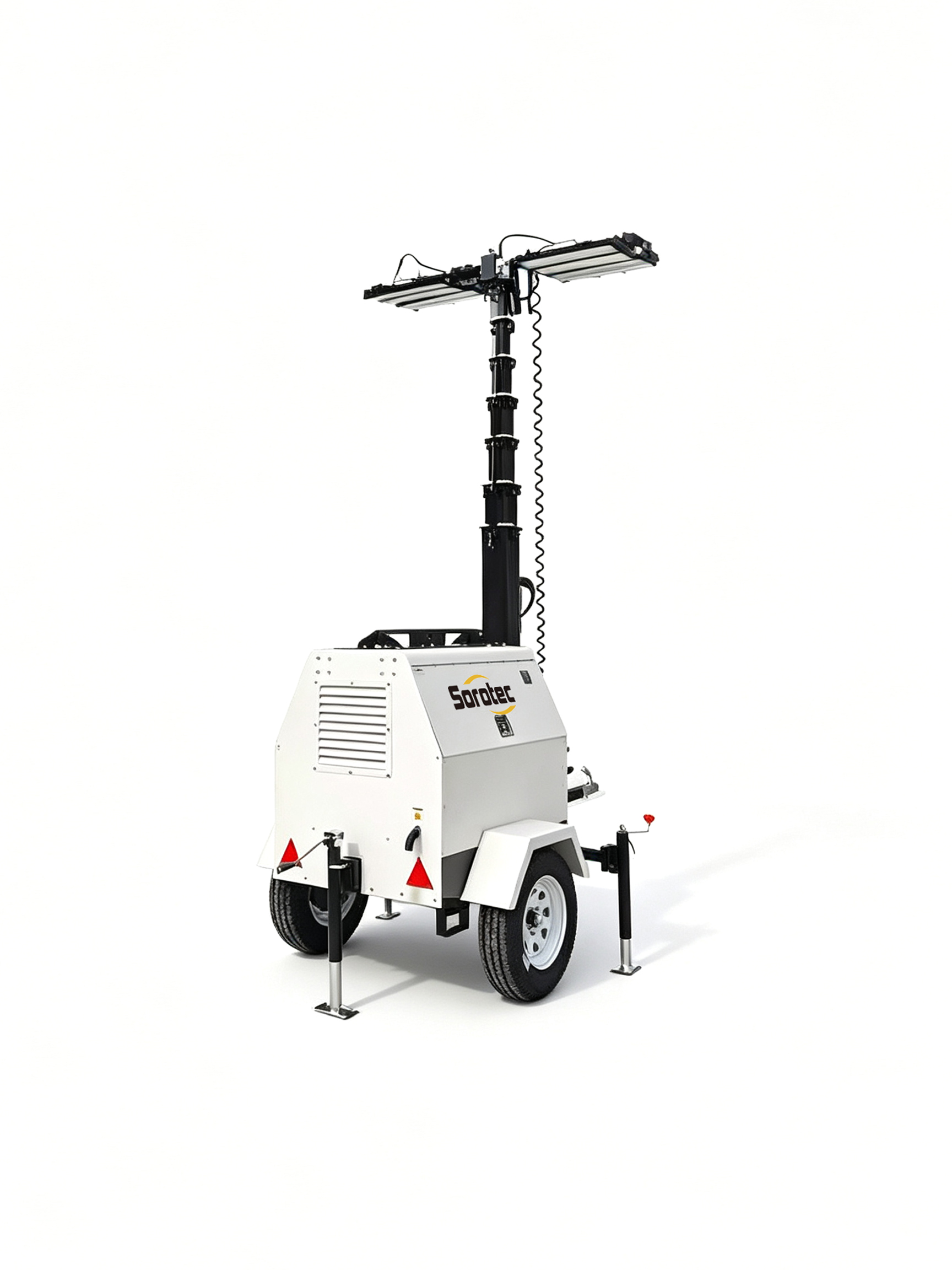

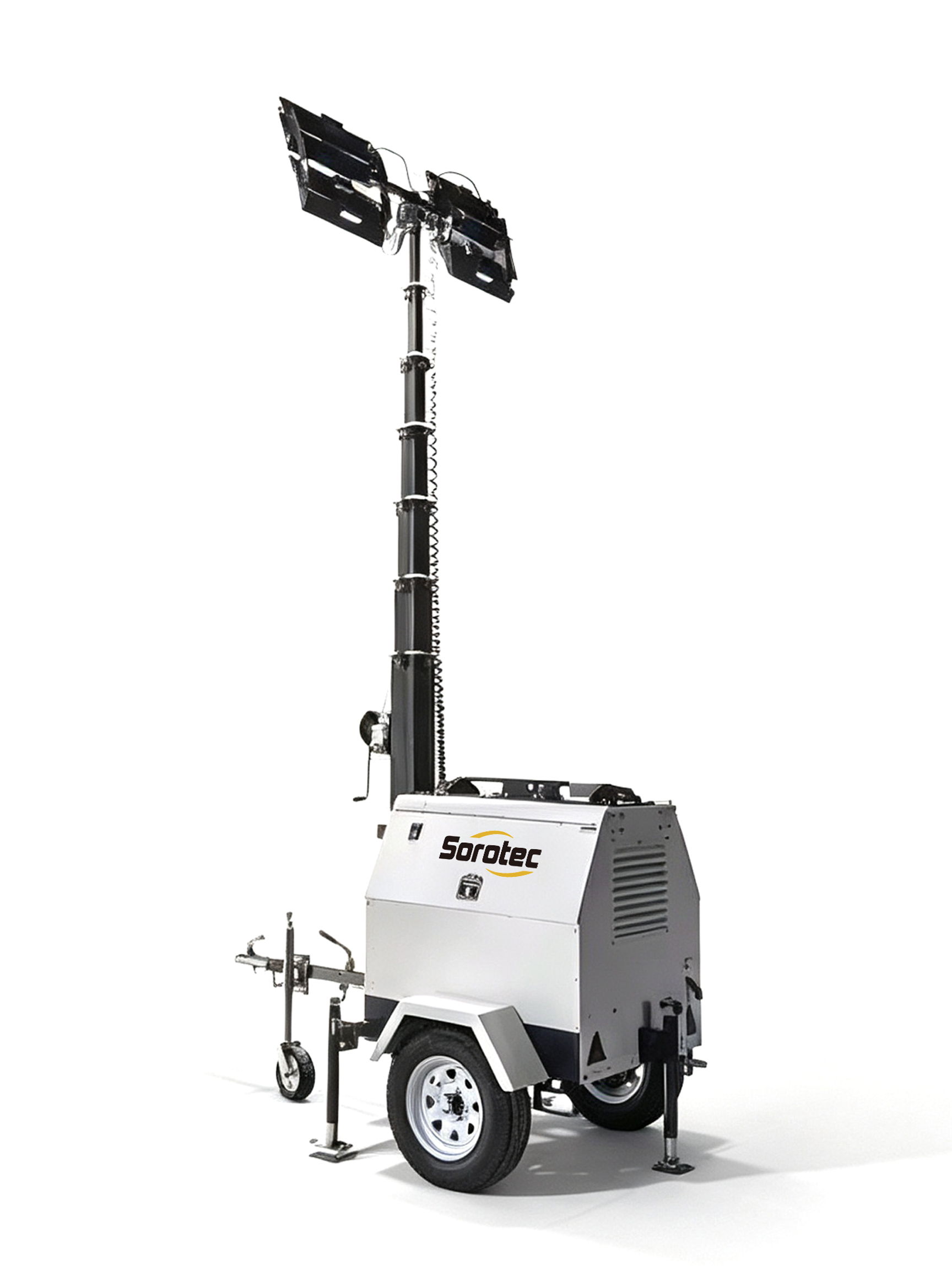

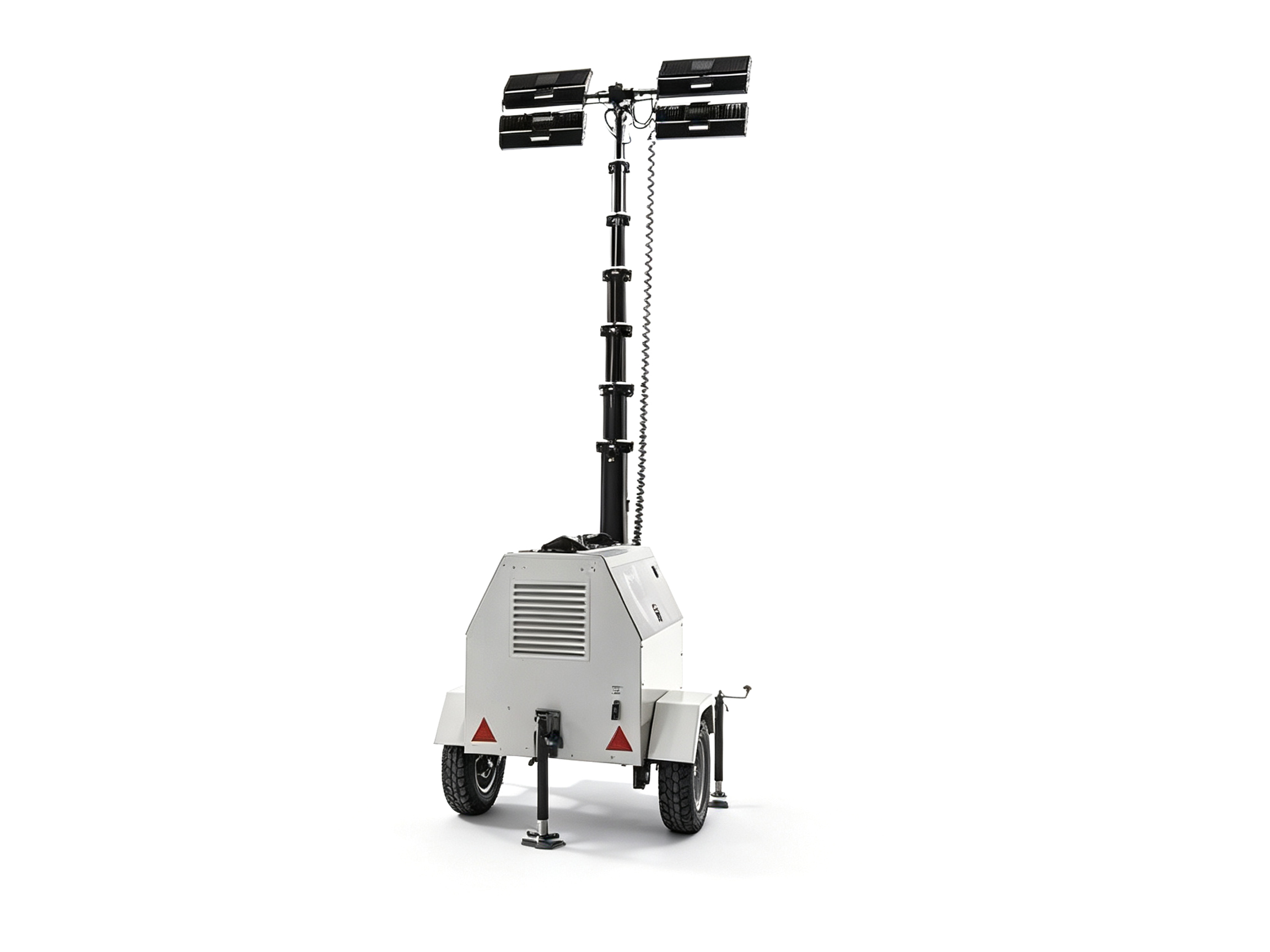

Product Show
