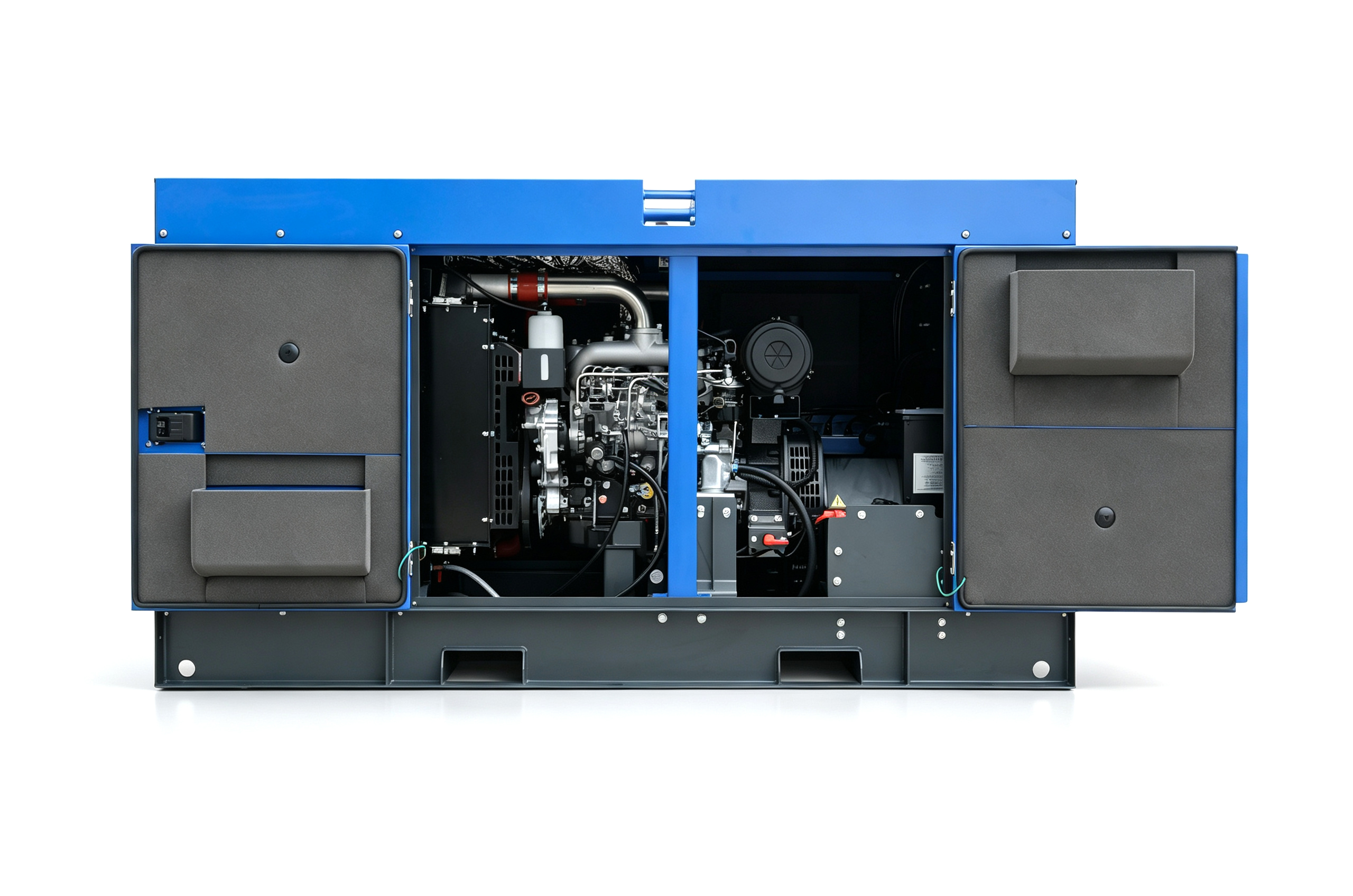

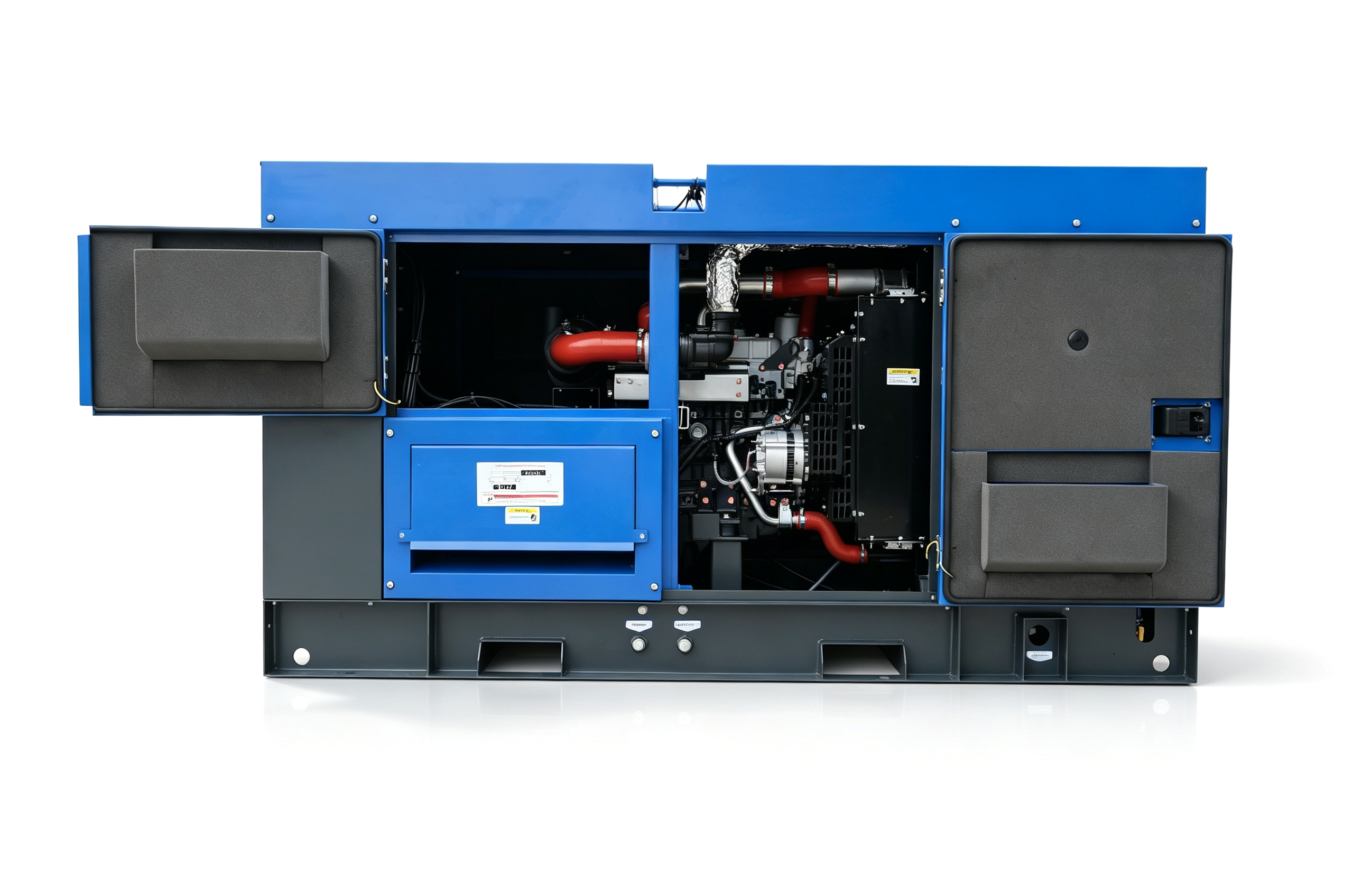

40kVA Silent Diesel Generator Set | Isuzu Engine | Deepsea Controller | 50Hz 400V

Short Description:

The 40kVA Silent Diesel Generator Set is powered by the reliable Isuzu JE493ZLDB-02 diesel engine (Japanese technology, manufactured in China) and coupled with a high-efficiency Kwise KAL184H5 alternator. Equipped with the genuine Deepsea DSE4620 controller (UK), this genset delivers stable power, low fuel consumption, and easy operation. Designed with a weatherproof soundproof canopy, it is ideal for continuous or emergency power supply in commercial, industrial, residential, and construction applications.

Send email to us

Product Detail

Technical Specifications

Prime Power	40kVA / 32kW
Standby Power	45kVA / 36kW
Frequency	50Hz
Speed	1500rpm
Voltage	230/400V
Phase	3 Phase

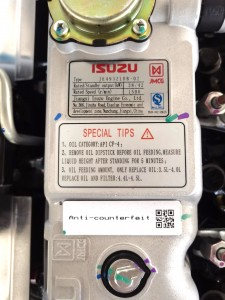

Engine	Isuzu JE493ZLDB-02
Engine Technology	Japan
Engine Manufacturing	China
Alternator	Kwise KAL184H5
Controller	Deepsea DSE4620 (Made in UK)
Circuit Breaker	Delixi MCCB
Starting System	Maintenance-free Battery & Battery Charger
Fuel Tank	Integrated Base Fuel Tank

Key Features

✔ Reliable Isuzu Engine
Powered by the proven Isuzu diesel engine, delivering excellent durability, low vibration, high efficiency, and long service life.

✔ High-Efficiency Brushless Alternator
Kwise alternator provides stable voltage output, superior insulation performance, and reliable operation under varying loads.

✔ Original Deepsea DSE4620 Controller
Advanced digital control system with Auto/Manual operation, automatic engine protection, fault alarms, remote start capability, and comprehensive monitoring functions.

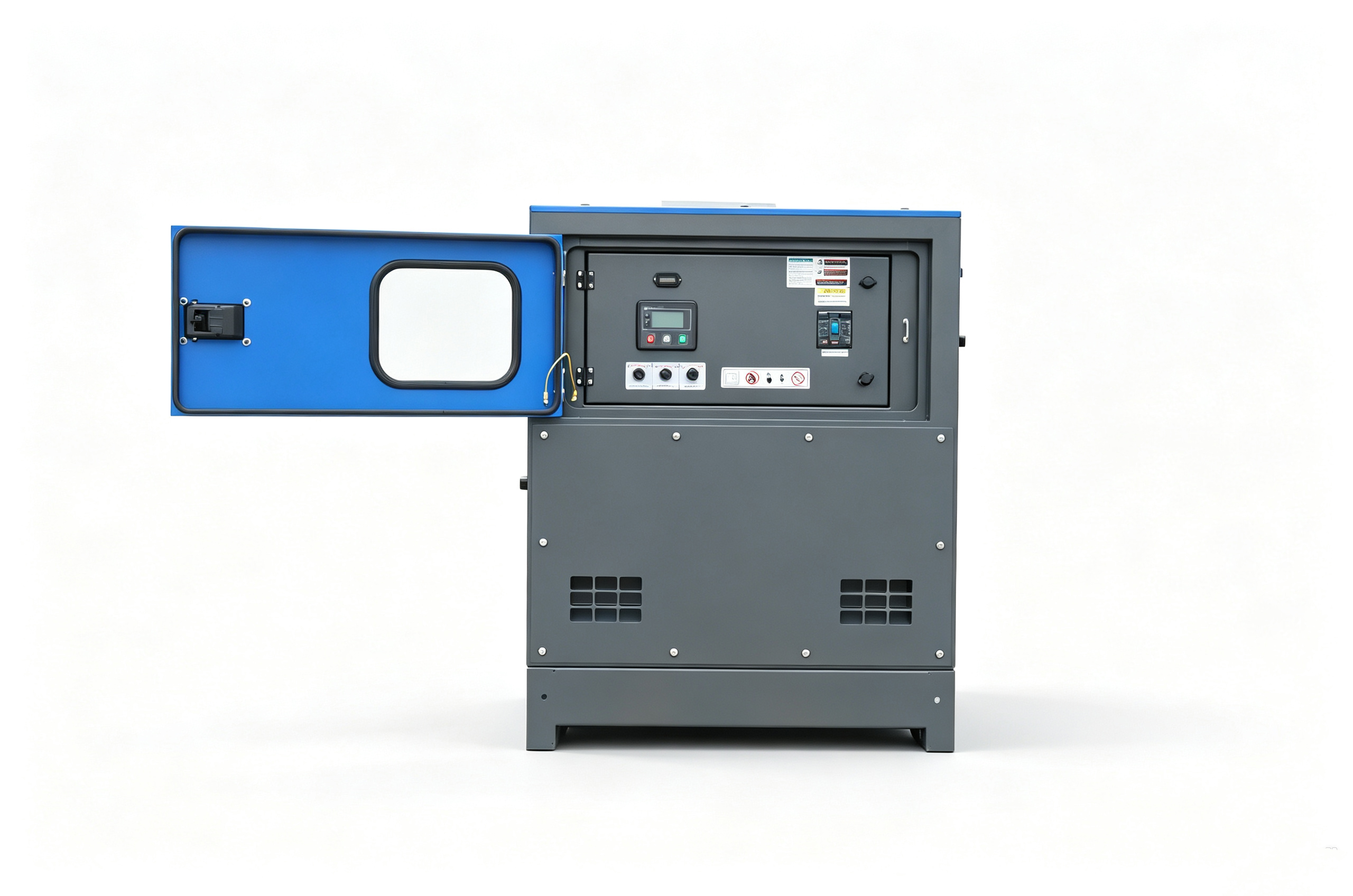

✔ Super Silent Canopy Design
Heavy-duty acoustic enclosure significantly reduces operating noise, making it suitable for residential, hospitals, hotels, offices, and urban environments.

✔ Low Fuel Consumption
Optimized fuel injection system ensures economical fuel usage while maintaining excellent power performance.

✔ Easy Maintenance
Large access doors and user-friendly layout provide convenient daily inspection and maintenance, reducing downtime and service costs.

✔ High Safety Protection
Equipped with Delixi MCCB, emergency stop button, overload protection, low oil pressure protection, high coolant temperature shutdown, and overspeed protection.

✔ Long Continuous Running
Integrated base fuel tank supports extended operation and is ideal for standby or continuous power applications.

Applications

The 40kVA Silent Diesel Generator is widely used for:

●Commercial Buildings
●Office Buildings
●Residential Backup Power
●Hospitals & Clinics
●Hotels & Resorts
●Telecommunications
●Construction Sites
●Manufacturing Plants
●Farms & Agriculture
●Schools & Universities
●Shopping Centers
●Rental Power Solutions
●Government Projects
●Data Communication Facilities

Optional Configurations

●ATS (Automatic Transfer Switch)
●Remote Monitoring System
●Trailer Mounted Generator
●50°C Tropical Radiator
●Larger Fuel Tank
●Battery Isolator Switch
●Fuel Water Separator
●Engine Heater
●Anti-condensation Heater
●PMG Excitation System
●AVR Voltage Regulation
●Synchronizing Control System

Why Choose Our Generator Set

●Japanese technology Isuzu engine
●Genuine Deepsea UK controller
●Stable voltage and frequency output
●Low noise and fuel-efficient operation
●Compact structure with easy maintenance
●Factory direct price with OEM & ODM service
●ISO9001 manufacturing quality control
●CE compliant components available
●Fast delivery and global after-sales support
