1650kVA Skid Mounted Diesel Generator | Cummins KTA50-G15A | Stamford S7L1D-D41

Short Description:

The 1650kVA Skid Mounted Diesel Generator Set is a high-performance power generation solution designed for mining operations, large construction projects, industrial facilities, factories, infrastructure projects and critical emergency power applications. With a rated output of 1650kVA and a maximum capacity of 1815kVA, this heavy-duty generator provides reliable and stable power for demanding environments where continuous and dependable electricity is essential.

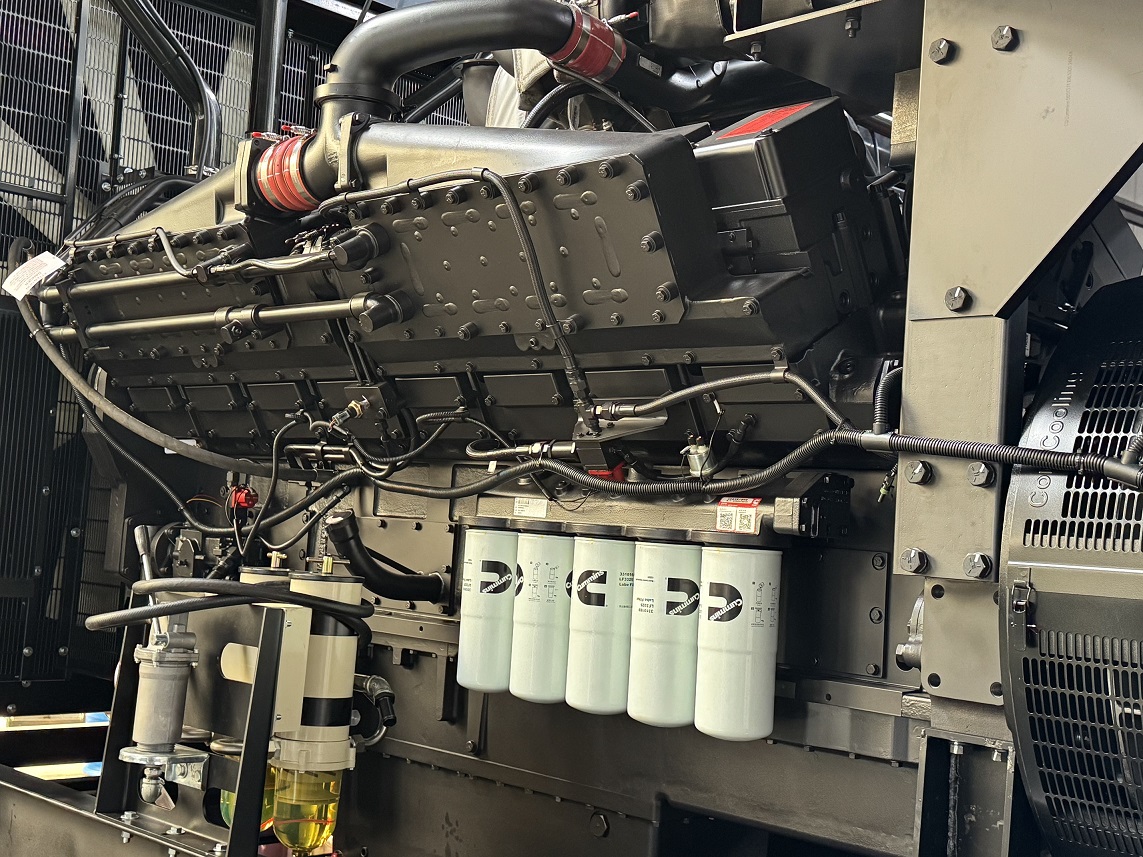

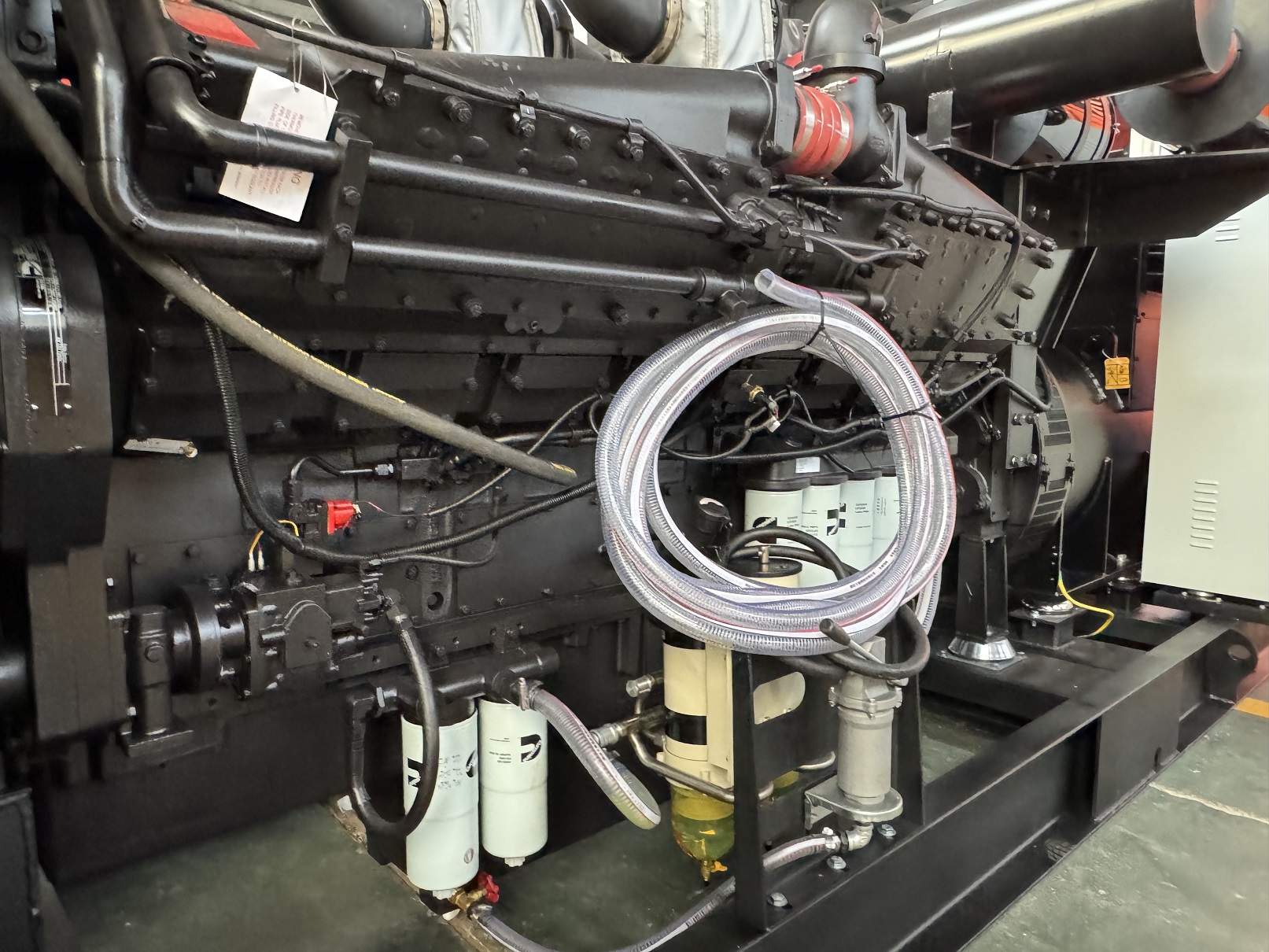

Powered by the globally recognized CCEC Cummins KTA50-G15A diesel engine, coupled with a Stamford S7L1D-D41 alternator and controlled by the advanced Deep Sea Electronics DSE8610MKII, the system combines high power density, proven reliability and intelligent generator control.

Send email to us

Product Detail

Key Specifications

•Generator Type: Skid Mounted Diesel Generator Set
•Rated Power: 1650kVA
•Maximum Power: 1815kVA
•Engine: CCEC Cummins KTA50-G15A
•Alternator: Stamford S7L1D-D41
•Controller: Deep Sea DSE8610MKII
•Circuit Breaker: 2500A
•Application: Prime Power / Standby Power
•Configuration: Heavy-Duty Skid Mounted Design

Key Product Features

1. High Power & Large Capacity
With 1650kVA rated power and up to 1815kVA maximum output, this generator is engineered to supply substantial electrical loads for large-scale industrial and commercial applications.

2. Globally Recognized Components
The combination of Cummins engine + Stamford alternator + DSE controller provides a reliable power system using internationally recognized brands. These components are widely used in demanding power generation applications worldwide.

3. Heavy-Duty Skid Mounted Design
The skid-mounted configuration provides a robust foundation for installation in mining sites, factories, construction projects and outdoor power stations. It is also suitable for customized fuel systems, weather protection and containerized solutions.

4. Intelligent Generator Control
The DSE8610MKII controller provides advanced monitoring and control functions and is particularly suitable for complex generator applications, including load sharing, synchronization and multi-generator systems.

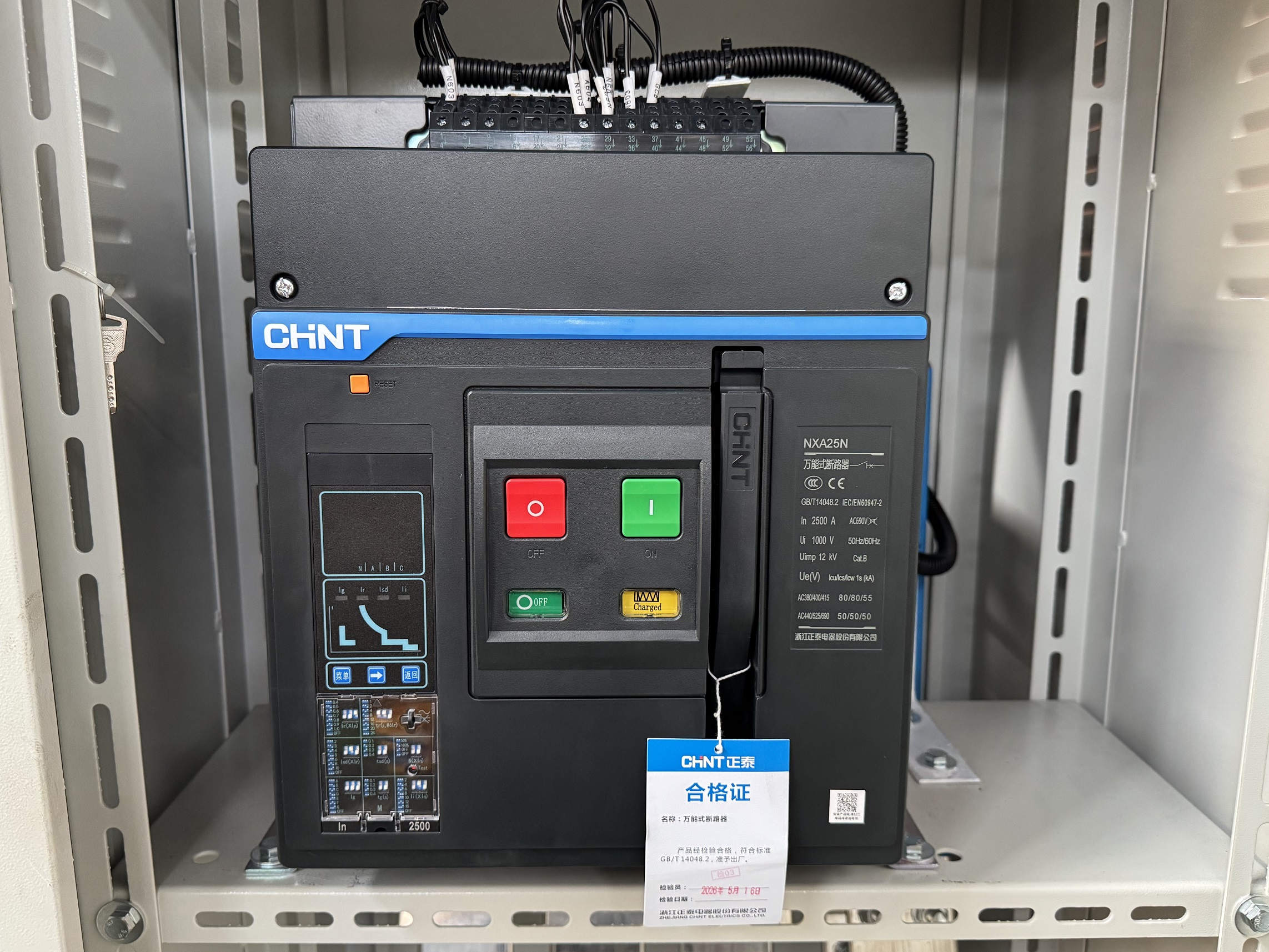

5. 2500A Circuit Breaker
Equipped with a 2500A circuit breaker, the generator is designed to handle high-current electrical loads and provides reliable protection for large-scale power distribution systems.
